Polyester PET Strap Making Machine Belt Package Production Line Siemens Motor
PRODUCT DESCRIPTION
PET strap, also known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, have been widely used in the steel industry, chemical fiber industry, aluminum ingots, paper, brick kiln industry, screw industry, tobacco industry, electronics, textiles and wood, etc.; It is replaced by a new high-strength steel strapping, is the world’s most widely used for steel products with high strength.
PET Strap Production Line Machine List
| NO. | Item | Specification |
| 1 | Power | According to customer's factory voltage |
| 2 | Material | PET raw material or 100% PET bottle flakes recycled |
| 3 | Capacity | PETJT90:200kg/h PETJT100:250kg/h PETJT125:350kg/h |
| 4 | Product size | Width:9-32mm Thickness:0.6-12mm |
| 6 | Mid-height of extruder | 7000mm |
| 7 | Installation power | PETJT90:200KW PETJT100:250KW PETJT125:300KW |
| 8 | Humidity | <85% |
| 9 | Temperature | 0-40 degree |
| 10 | Cooling tower capacity | 30T/H or 50T/H |
| 11 | Installation Dimensions | PETJT90:45*2.0*7.0M PETJT100:45*2.0*7.0M PETJT125:60*3.0*8.0M |
| 12 | Product color | Green/Black/Pink/Yellow |
| 13 | Factory dimension | 35m*(3~6)m*(4~6)m 45m*(3~6)m*(4~6)m If your factory not big enough,please contact with us,our engineer can according to your size to design |
Features of PET packing strap production line:
PET packing belt finished product features: made of POLYESTER (PET) material, commonly known as plastic steel belt, is made of polyethylene terephthalate as the main raw material, it is currently used as a substitute for steel belt in the world. A new type of environmentally-friendly packaging material has been widely used in the steel industry, chemical fiber industry, aluminum ingot industry, paper industry, brick kiln industry, screw industry, tobacco industry, after the development of new materials and the significant cost reduction in recent years. Electronics, textiles and wood.
1 Tensile: PET plastic strip is a kind of packaging material with good tensile strength and excellent welding performance.
2 The elongation is small: the elongation is only one-sixth of that of the polypropylene (PP) belt, and the tension can be maintained for a long time.
3 strong temperature resistance: melting point of 260 degrees, superior weather resistance, between -50 ° C -120 ° C, maintaining good stability.
PET strapping and steel strap comparison:
1 Appearance: The steel strip will rust due to exposure to moisture in the air. The strong rust permeability will easily contaminate the packaged object, and the PET strap will not rust, the color will be bright, and it is environmentally friendly. No need for steel buckle combination, no indentation, scratching,
Economic Benefit: The length of 1 ton PET strapping is equivalent to 6 tons of steel belt. The unit price per meter is lower than steel belt, which can reduce the cost for you.
2 Safety: PET plastic belt has no sharp edge of steel strip, will not scratch the package, and will not hurt the hand. Even if the binding is tight, it won't hurt when you cut it.
3 Packaging performance: The coating tightness after packaging is good. After long-distance transportation of the package, there will be expansion and contraction, and the PET tape can maintain a good tension. PET steel strip has good ductility, good impact resistance, and is not easy to break, which ensures the safe transportation of your products.
4 Economic Benefits: The density of PET plastic strip is only 1/6 of the density of steel strip, and the price per unit length is relatively low.
Product Tags:
|
|

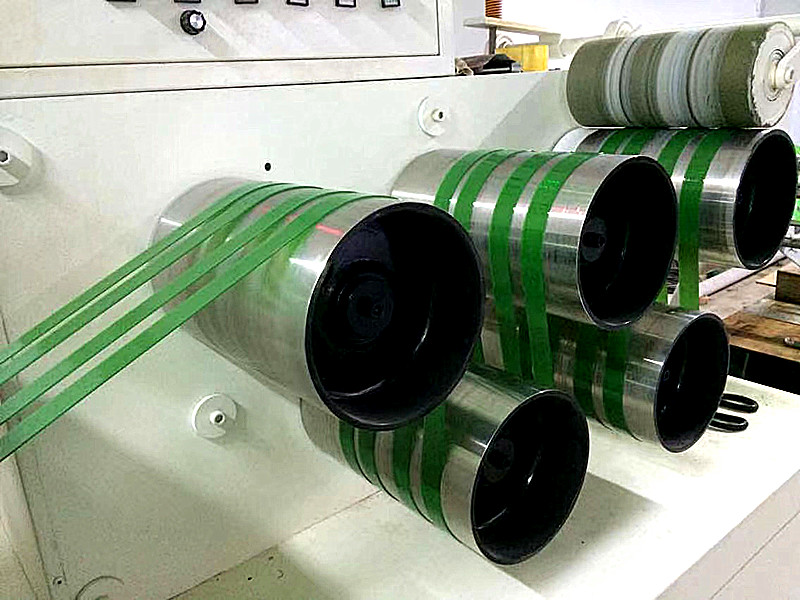

200kg/H Polyester PET Strap Extrusion Line Siemens Motor For Brick Kiln Industry Images
|
