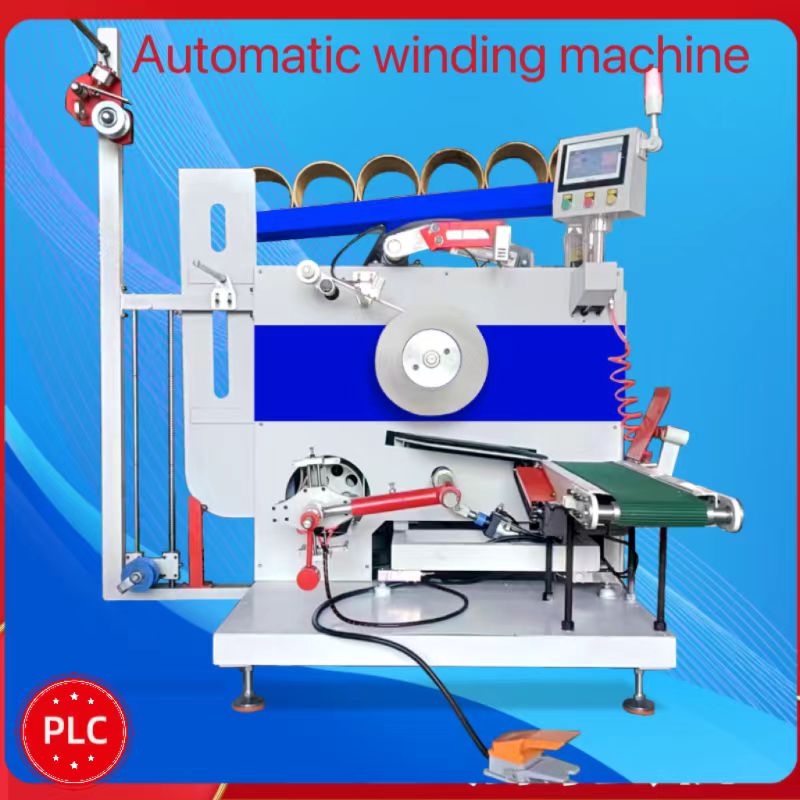

Servo PP Strapping Winding Machine 1.8KW Power Consumption Line Speed 220-300 m/min Low Failure Rate

Product Description of Automatic PP winding machine:

1.Using condition: power single-phase 220V, air pressure 4-7kgf, plug the air pipe(Φ8)in according to the marks on the equipment,connect the electronic line(2.5 m2 +).Ventilate first, then electrify(When turning off the machine in reverse order-first turn off the electricity, then turn off the air pressure).

2.Use the servo motor to lay the cable, and wind up the PP STRAP with the width of 7-19mm. Select the corresponding bandwidth through the touch screen to wind up, and there is no need to manually replace the transmission gear.

3.After the winding is completed, the machine will stop automatically, replace the paper tube, cut off the PP STRAP and clamp the pieces to fix the STRAP head, and the winding operation will be carried out automatically, and the whole process will be completed automatically.

4.The winding shaft uses the torque mode of servo motor, and the torque during winding can be set through the touch screen, so that the PP STRAP with different gram weight or width can be wound with appropriate torque, so be best to minimize the bending deformation of the PP STRAP after winding.

5.After the winding is completed, the exiting packing belt will automatically move to the storage belt conveyor. About 3 rolls can be placed on the conveyor, and it can also be lengthened according to the needs of customers.

6.Paper tube: 203mm * 165~195mm paper tube, 10mm thick, recycling old paper tube is not available.

Features of Automatic PP winding machine:

• Product Name: PP Strapping Band Winding Machine
• Paper tube: ¢200mm * 180mm
• Application: Packaging Industry
• 30 years old brand: YES
• Power Consumption: 1.8KW
• Strap Thickness: 0.4-1.2mm
• Servo motor line automatic winding machine
• PP STRAP WINDER DUAL-SERVO MOTOR
• PP strap full-automatic winder

Technical Parameters of Automatic PP winding machine:

PP STRAP WINDER DUAL-SERVO MOTOR, PP strap full-automatic winder, Servo motor line automatic winding machine

Applications:

The Strapping Band Winding Machine is suitable for a wide range of product application occasions and scenarios. It is ideal for businesses that need to package products in a variety of sizes and shapes. The machine can be used in industries such as manufacturing, shipping, logistics, and retail.

The Strapping Band Winding Machine is perfect for businesses that need to package large volumes of products quickly and efficiently. It is ideal for businesses that need to package products in a variety of sizes and shapes. With its automatic winder and servo winding machine, the machine is capable of winding strapping bands automatically, saving time and ensuring consistency in the packaging process. The machine is easy to operate, and its compact design makes it suitable for use in a variety of settings.

Customization:

Our Automatic PP/PET packing and winding machine (model JTPP/PET) is made in China and provides reliable and efficient strapping band winding. With strap widths ranging from 5-19mm, this machine is perfect for a variety of applications. The dual-servo motor design ensures smooth and accurate operation, while the no need to change gears feature makes it easy to use. Additionally, the machine comes with an auto wrap PE film feature and adjustable tightness for added convenience. With a power consumption of only 1.8KW, this PP strap full-automatic winder or PET strap full-automatic winder is a great choice for businesses looking to streamline their packaging processes.

Support and Services:

Our technical support team is available to answer any questions that our customers may have about the machine. They can assist with installation, troubleshooting, and any other technical issues that may arise.

In addition to technical support, we also offer maintenance services to keep the machine in optimal condition. Our team can perform routine maintenance checks and repairs to ensure that the machine is functioning at its best.

For customers who require training on how to use the machine, we offer training services to ensure that they are able to use the machine effectively and safely. Our training sessions cover everything from basic operation to more advanced techniques.

Overall, we are committed to providing our customers with the support and services they need to get the most out of our Strapping Band Winding Machine.

Packing and Shipping:

Product Packaging:

• The strapping band winding machine will be packed in a sturdy cardboard box.
• The box will be lined with foam for extra protection during shipping.
• All necessary accessories and parts will be included in the package.

Shipping:

• The strapping band winding machine will be shipped via a reputable courier service.
• Shipping times may vary depending on the destination, but will typically take between 3-7 business days.
• A tracking number will be provided to the customer once the item has shipped.
• Shipping costs will be calculated at checkout based on the customer's location.
