9-25mm high speed PET plastic steel belt production line PET belt making machine for efficient dehumidification
Product Description of pet strap manufacturing machine:
PET strapping production line is a high-speed, intelligent and environmentally friendly plastic equipment with the following advantages:
PET strapping machine is an industrial equipment used to make polyethylene terephthalate (PET) strapping, which is widely used for packaging and strapping in various industries such as logistics, construction, steel, aluminum, chemical fiber, cotton spinning, etc.
PET strapping stands as a powerful, eco-conscious alternative to traditional steel and PP strapping, boasting high tensile strength, exceptional flexibility, and commendable recyclability as its key attributes
.
PET Packaging Belt Production Line Process Flow
Loading → Mixing raw materials → Pre-drying → Vacuum dehumidification → Melting & metering extrusion → Cooling & forming → Preheating oven → Primary stretching → Secondary stretching → Embossing → Oven tempering & shaping → Cooling → Finished product winding
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials |
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 |
| Width (mm) | 0.4-1.2 |
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder |
| Winding machine | Automatic winding/ Semi-automatic winding |
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
Advantages of PET Plastic Steel Belt Equipment:
Economical and efficient: This equipment promises long-lasting service life, minimal maintenance needs, and a high level of automation, establishing itself as a cost-effective and efficient choice for packaging materials.
Efficient: With superior strength and durability, this system ensures seamless material handling, sustainable production processes, and minimal downtime.
Safety: Its robust construction guarantees safe and reliable operations, significantly reducing the risk of belt failure.
Energy Saving: This energy-efficient system supports environmental protection, delivering high output with reduced power consumption.

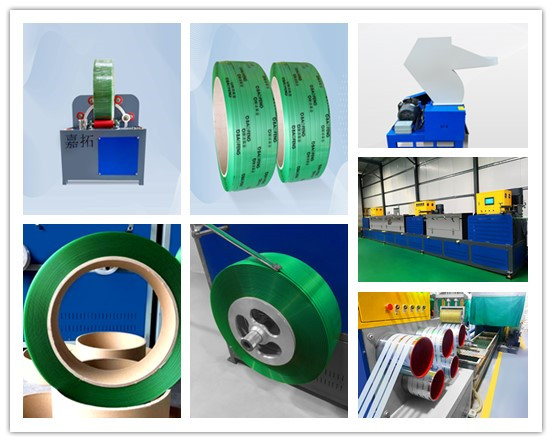

pet strap production line
pet strapping band making machine
pet strapping band machine
pet strapping band making machine
PET packaging tape, also known as plastic steel tape, is a new type of binding tape that replaces steel tape. It is widely used in industries
such as cotton spinning, chemical fiber, metallurgy, casting, can making, refractory materials, ceramics, brick making, glass, paper making, furniture, tobacco, wood, electronics, etc.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, ranging from 150-600KG/H
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
